Description

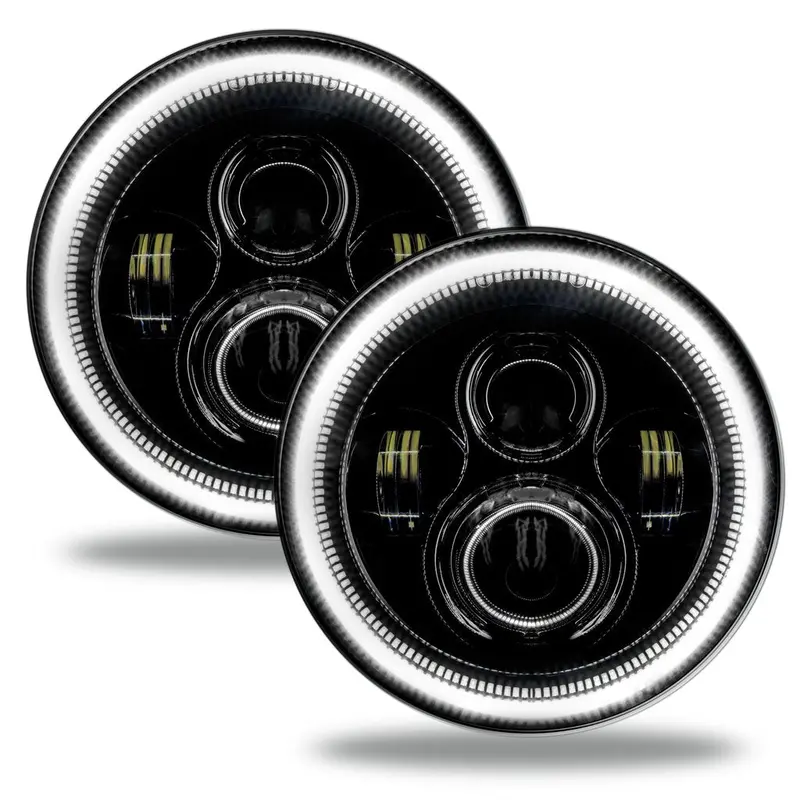

The Ultimate LED replacement headlight option for any vehicle with 7″ Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 Plug and Play connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization! Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos. NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues. Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product. Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
Specifications:
| Add-On | N/A |
| Amp Draw | 2.50 Amps at 12V DC / 1.30 Amps at 24V DC |
| Contents | (2x) ORACLE 7in. High Performance LED Headlights, (2x) Plug & Play Wiring Adapters, (2x) Direct-Fit Beam Adjustable Headlight Brackets |
| Description_ASM | 2019 thru 2021 Jeep Wrangler |
| Description_DEF | Headlight Assembly |
| Description_DES | 7 in. High Powered LED Headlights, White, Pair |
| Description_EXT | Kit comes with H4 and H13 connectors as well as a set of anti flicker warning cancelers. The kit features vertical and horizontal headlight adjustment so you can aim the light where you need it on the road. |
| Description_FAB | Premium Performance Phillips Luxeon ZES LEDs |
| Description_INV | Oracle – Headlights – 5769J-001 |
| Description_MKT | The Ultimate LED replacement headlight option for any vehicle with 7″ Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 Plug and Play connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization! Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos. NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues. Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product. Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output. |
| Description_SHO | Headlights |
| height | 20.0 |
| High Beam Lumens | 3600 |
| Kelvin Temperature | 6000K |
| LED Color | White |
| length | 10.0 |
| Low Beam Lumens | 2200 |
| LTL | N |
| Prop 65 (C, R or CR) | CR |
| Prop 65 – Long Label | Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Prop 65 – Short Label | WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov |
| Prop 65 – Warning | Warning – Both Cancer and Reproduction.JPG |
| Prop 65 Yes/No | Yes |
| Title | 5769J-001 – Headlight Assembly |
| Voltage | 12-24V DC |
| Warranty | 2 Year |
| weight | 11.0 |
| width | 14.0 |
